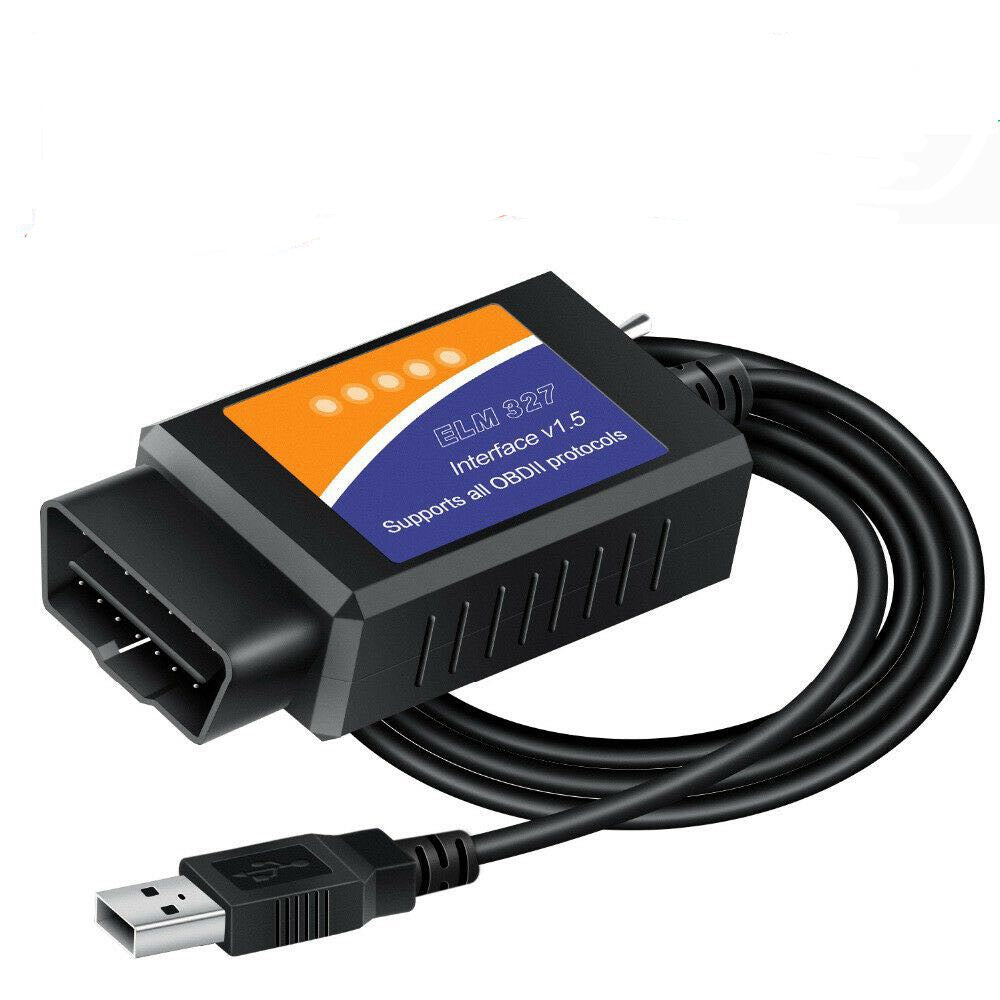

Ford FORScan ELM327 V1.5 USB Modified OBD Code Scanner HS MS-CAN ELMConfig

Ford FORScan ELM327 V1.5 USB Modified OBD Code Scanner HS MS-CAN ELMConfig

Regular price $39.95 AUD
Regular price $49.99 AUD Sale price $39.95 AUD
Sale Sold out

FORScan ELM327 scan tool supports all OBD2 protocols (J1850PWM,HS CAN, MS CAN, HS CAN2, HS CAN3), this OBD scanner works as a normal OBDII/EOBD/CAN car code reader on most supported vehicles(from year 1996).

What is more: it is designed with MS-CAN / HS-CAN toggle switch, it can do more professional functions for Ford / Mazda / Lincoln, it is a favorite tool and accessories sought by Ford owners.


Attention Please:

  1. The Driver is for 32 /64 bite Windows Vista/XP/7/8/8.1/10/10 pro.

  2. USB Driver: CH340

  3. It is for windows OS, not for APP.

  4. New 2019+ Mazda 3 and CX-30 are not Support


There are many OBD2 scanners, but does this somehow differ?

Yes, because it is designed especially for Ford, Mazda, Lincoln and Mercury vehicles.

So supports specific features of the manufacturer protocols, making the FORScan more powerful in work with these models than any regular OBD2 scanner.


Why Choose The ELM327 USB:

Please note that many for Ford and for Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins.

This ELM327 has been modified to allow it to implement the MS CAN bus.

This ELM327 USB supports HS CAN from the stock, because for Ford HS CAN completely matches to the OBD2 standards.HS CAN occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.

ELM327 USB Advantages:

  1. Besides added functionality for Ford series, this device works as normal OBD2/EOBD code reader on most supported vehicles.

  2. Firmware Version is V1.5, with best PIC18F25K80 Chip

  3. Add functionality for Ford cars, Even support hidden function for ford Focus Mondeo Kuga. (Hidden function Support car list: 2006-2016 classical for Focus , 2012-2015 new for Focus , 2013-2015 Kuga).

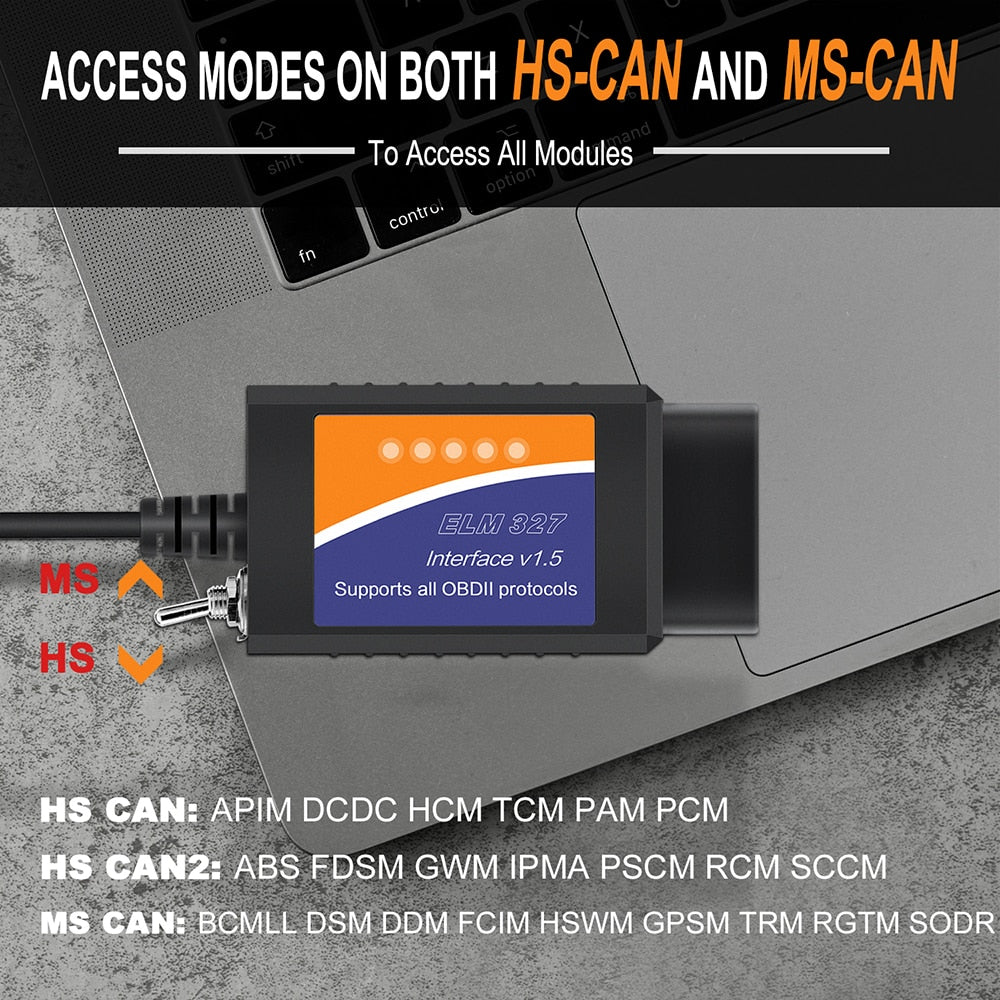

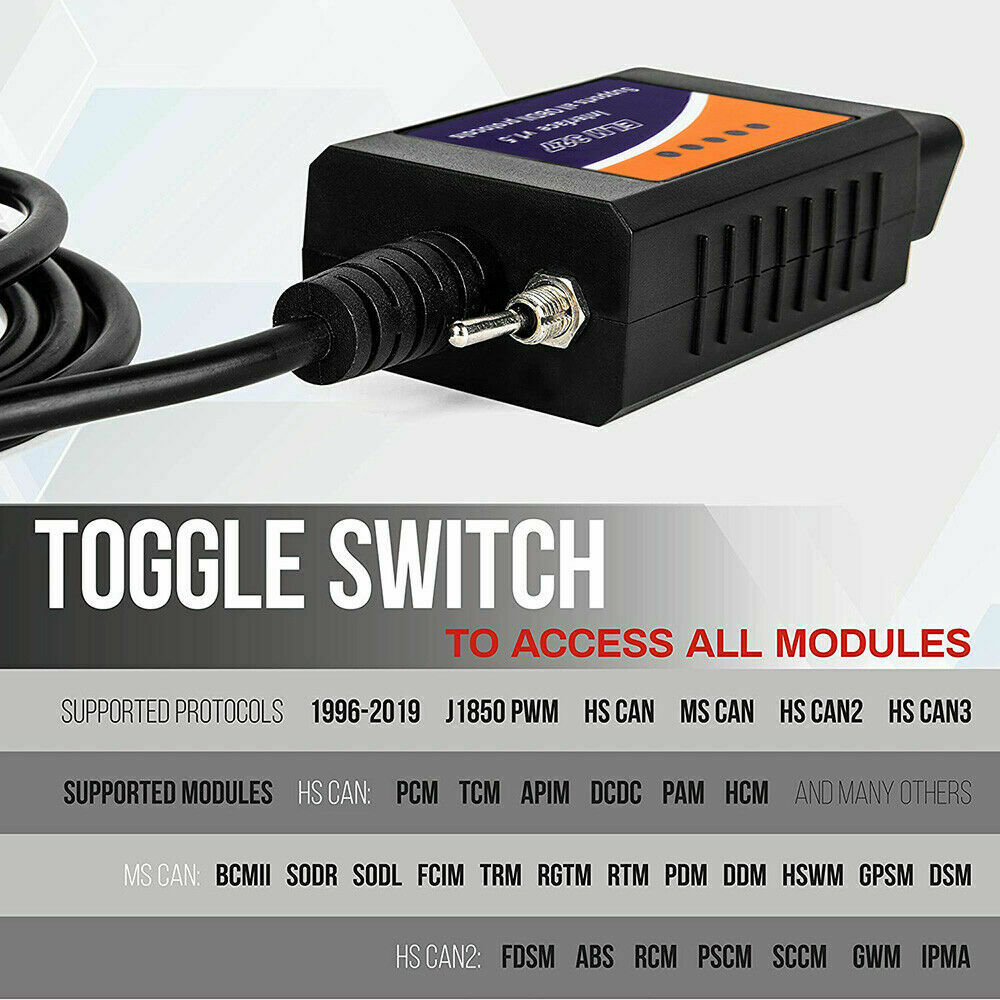

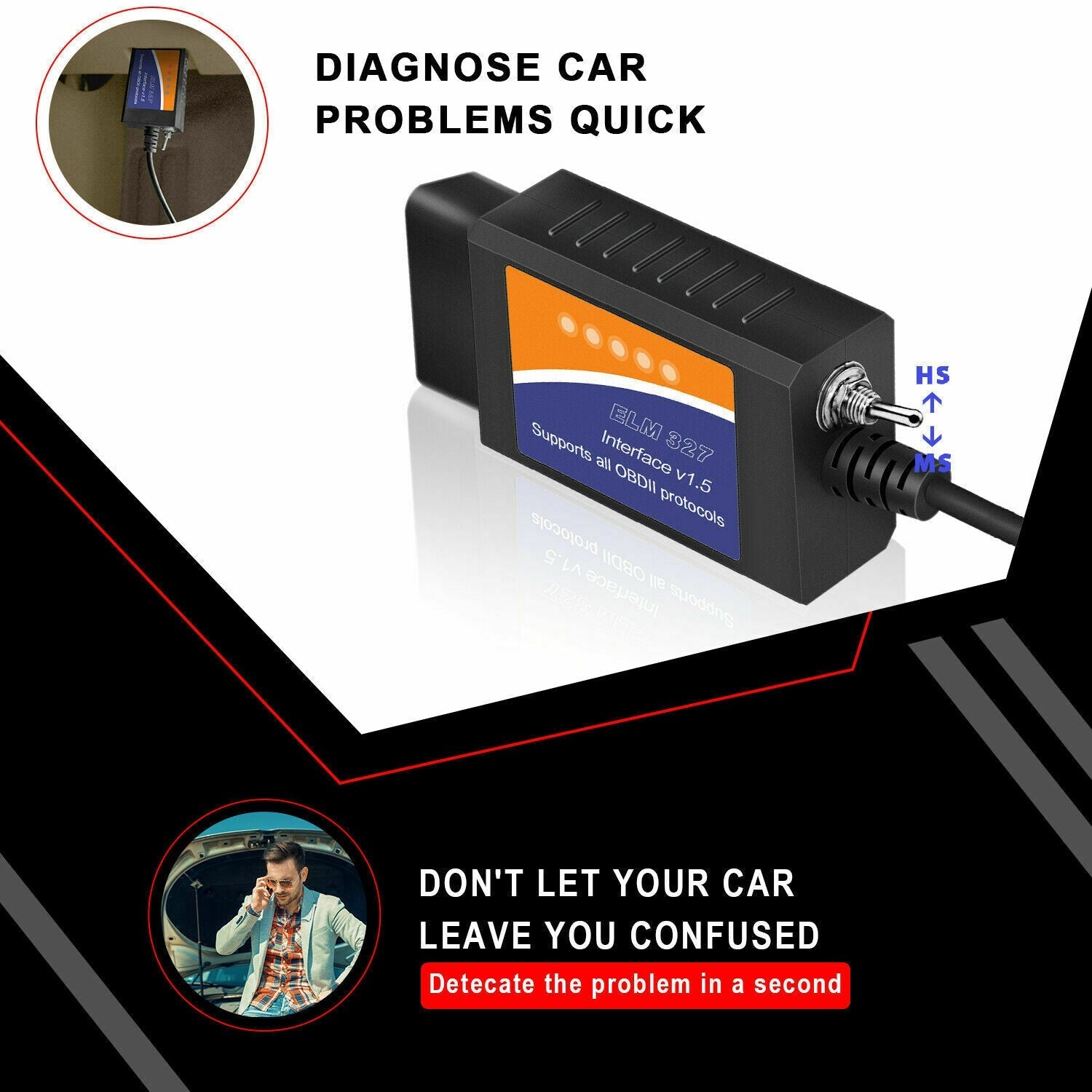

  4. Special Design with Switch :  connect different CAN buses , such as MS CAN bus and  HS CAN bus

  5. Majority of modern Ford modules are accessible only through this protocol.

  6. Powerful Softwares Compatible: FORScan, Elmconfig, FF2 and FoCCCus.

  7. Drivers and instructions included, easy to install.

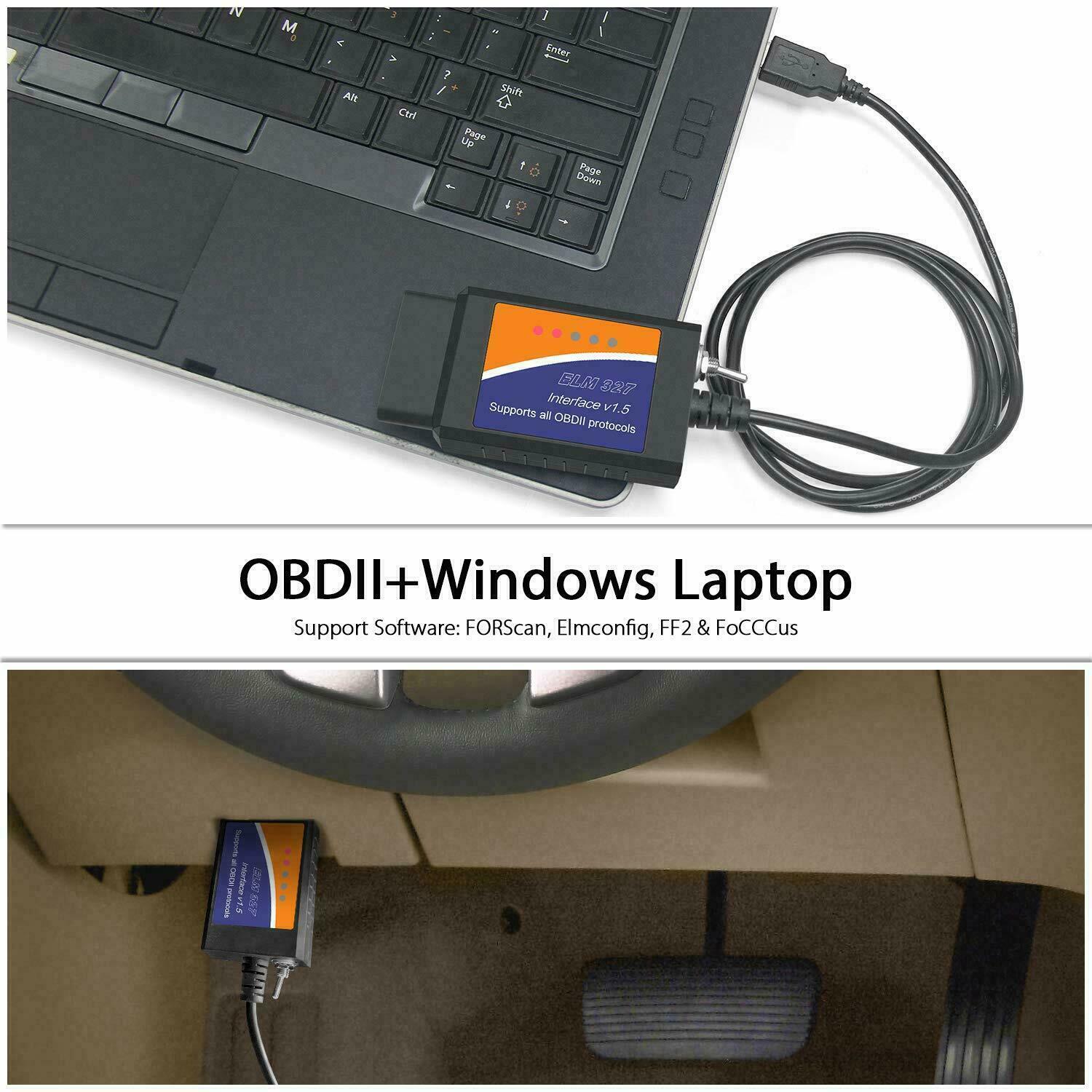

  8. The ELM327 and laptop are connected via USB cable, USB Connection make your testing process more stable. No need to worry about vehicle damage due to programming interruption.


FORScan Software Support :

FORScan can detect modules which are not visible for regular OBD2 scanners, can show you trouble codes which are never displayed by OBD2 scanners, can show you PIDs which are not supported by any OBD2 scanner, run specific tests and service procedures.

In other words, FORScan can do things that regular OBD2 scanners can not do.

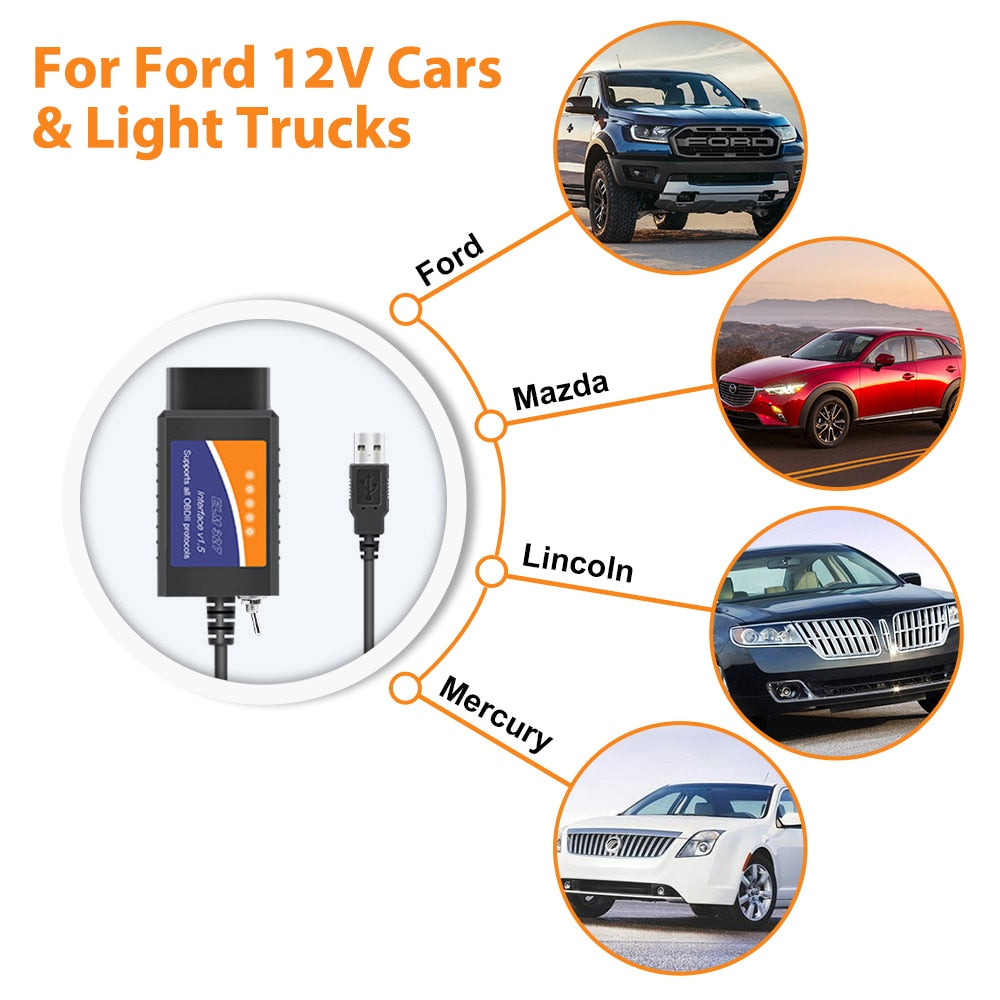

Supported Vehicles:
All Ford, Mazda, Lincoln, Mercury vehicles that can be addressed by supported adapters. It is 99% of models after 2000 and around 92% of models after 1996 (the year when OBD2 became a standart in USA).
●Note: New 2019+ Mazda 3 and CX-30 are not supported

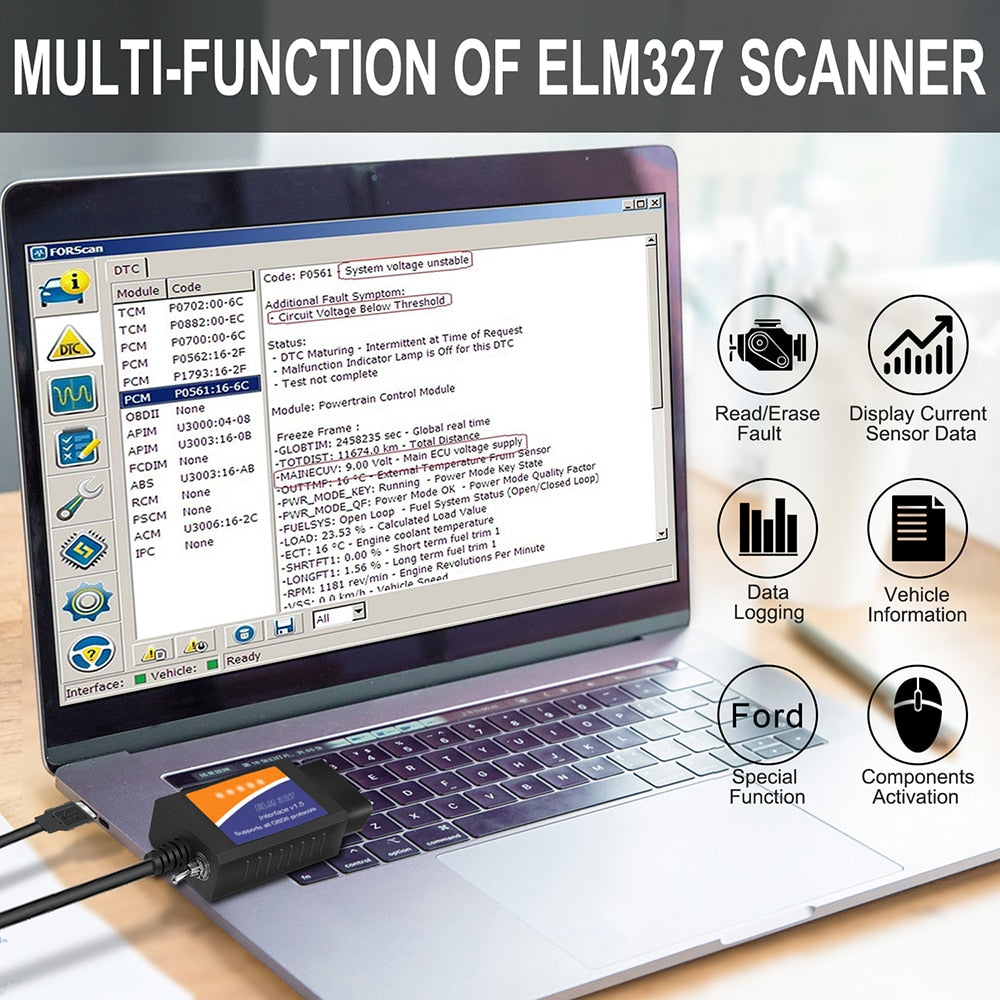

FORScan Main Features:

●Detect vehicle on-board network configuration

●Read and reset Diagnostic Trouble Codes from all modules (see list of supported modules on forscan official store)

●Reading of modules' sensors' data

●Run test diagnostic procedures

●Run service procedures
FORScan Supported Languages:
●When starting HS function, it supports 12 Languages: English,Czech,Danish,German,French,Spanish,Hungarian,Italian,Polish,Turkish,Serbian,Croatain
●When starting MS CAN function, it supports Language: English & Russian.
